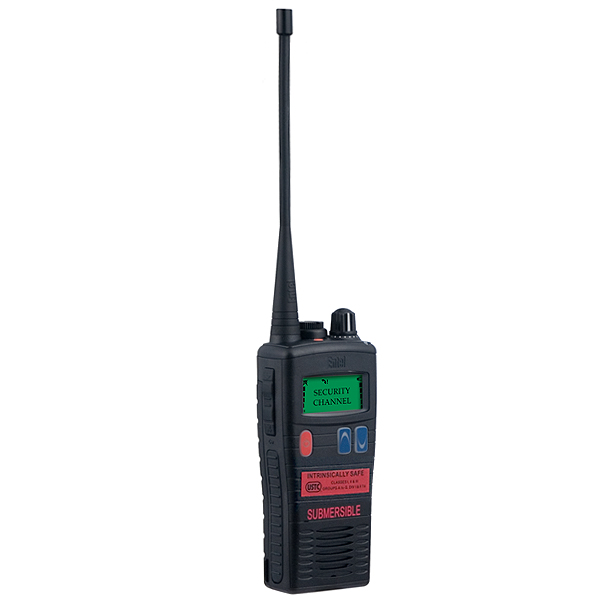

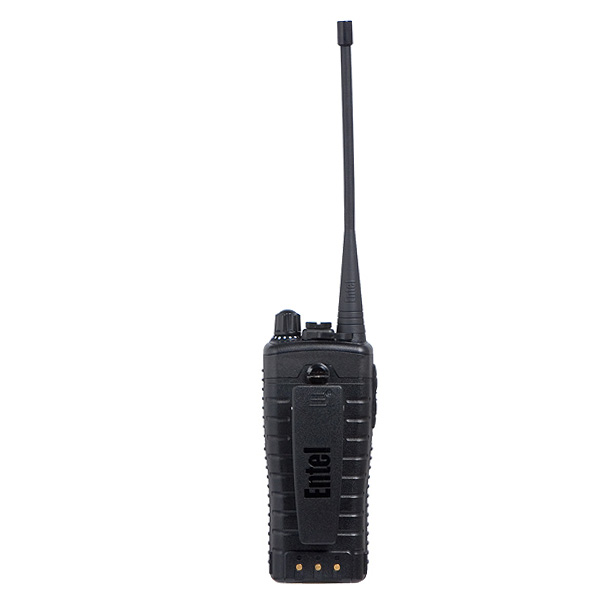

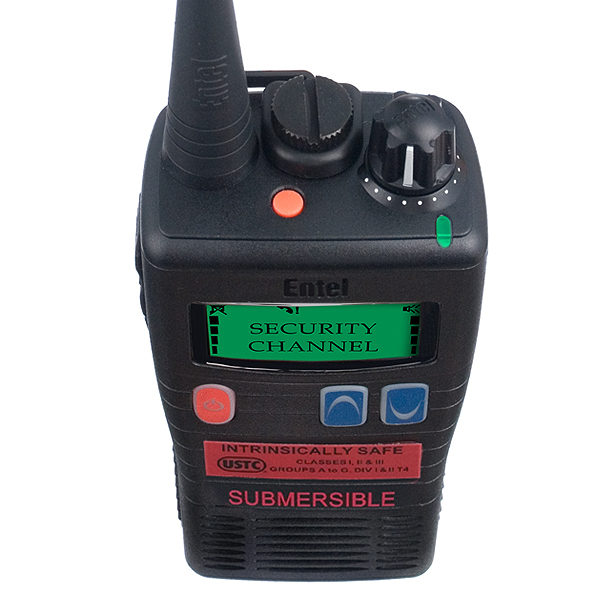

HT883 ATEX IIA LCD UHF
Utilising the latest intelligent Lithium-Ion battery technology, these marine portables give you the option of displaying a battery cycle count each and every time you power-on your radio. For your convenience it will even alert you to imminent battery life expiration.
The commercial grade HT Series 2.0 portables, with their exceptionally loud audio, are also designed to withstand the every day rigours of life at sea, with superior MIL-STD 810/C/D/E/F construction and IP68 submersibility making them the most robust and durable marine portables on the market.
Features:
- Submersible to IP68 (
5 metres for 1 hour) - MILSTD 810C/D/E/F
- 1800mAh Li-Ion battery
- Flash upgradeable to add future features
- 255 channels
- Scan/priority scan
- Voice annunciation (option)
- Bluetooth™ wireless communications (option)
- Clone data from one radio to another
- 7-key keypad
- Robust accessory socket
- VOX hands free (with audio accessory)
- Programmable channel monitor button
Battery charge count - Talkaround
- Programmable scrambler (voice inversion) (option)
- Local Personal Attack Alarm
As standard the HT883 is supplied with:
- CNB950E – 7.4v, 1800mAh rechargeable Lithium–Ion battery pack
- CBH950 – ATEX approved spare spring loaded belt clip
- Trickle charger.
- High efficiency helical antenna (can be exchanged for stubby aerial at point of order)
- User manual
Specifications:
| General | |
| Frequency Range |
400 - 470MHz (HT883)
450 - 520MHz (HT883-U) |
| Channels | 255 Channels |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Communication Method | Simplex / semi duplex |
| Antenna Impedance | 50 ohm |
| Antenna | Whip / stubby |
| Battery Type | 1800 mAh Li-Ion battery pack |
| Power Supply Voltage | 7.4V DC |
| Current Drain (nominal) |
When transmitting (4W) - 1800mA
When transmitting (1W) - 850mA When receiving (0.5W) - 160mA Receiver standby - 50mA |
| Duty Cycle (5/5/90) | 15 hours (high) / 19 hours (low) |
| Microphone | Internal condenser microphone |
| Operating Temperature | -20° to +55° |
| Size (mm) |
59.5(W) x 130(H) x 37(D) W = 59.5mm ;(62 including protrusions)
H = 130mm (145 including knobs) D = 37mm (41 including battery protrusions) |
| Weight | 277g with battery and aerial |
| Transmitter | |
| Power Output | HIGH – 4W, LOW - 1W |
| Modulation | 8K0F3E/16K0F3E |
| Oscillator Method | PLL |
| Frequency Stability | < ±0.00025% (±2.5PPM) |
| Maximum Deviation | ±2.5 kHz(Narrow)/ ±5 kHz(Wide) |
| Audio Distortion | < 5% (1 kHz 60%) |
| Spurious Emission | -68 [dBc] |
| Hum & Noise | -40 [dB] |
| Receiver | |
| Receiver Type | Double Super Heterodyne type |
| Sensitivity | -0.25uV (12dB SINAD) |
| Frequency Stability | ±0.00025%(±2.5PPM) |
| Spurious Rejection | -60 dB |
| Adjacent Channel Selectivity | -60 dB (Narrow) , -70 dB (Wide) |
| Distortion | < 3% Typical |
| Hum & Noise | -40 dB |
| Audio Output | 1W |
| Speaker Size |
|
