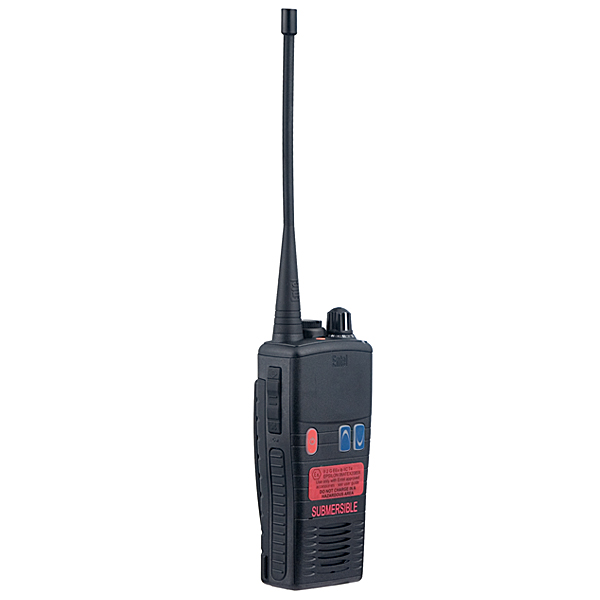

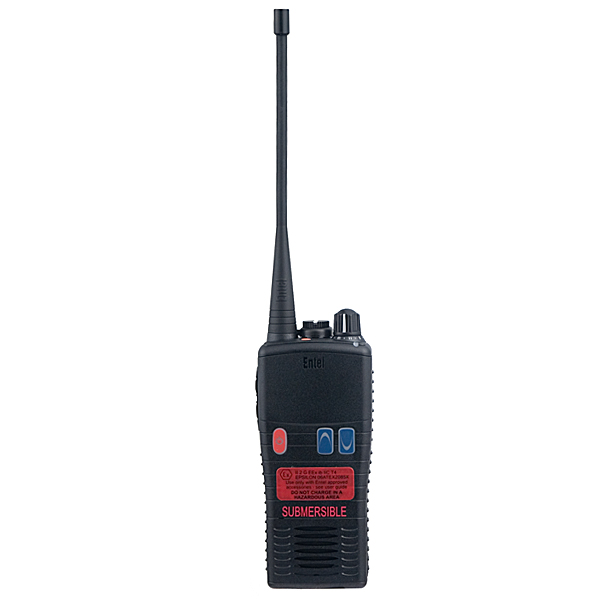

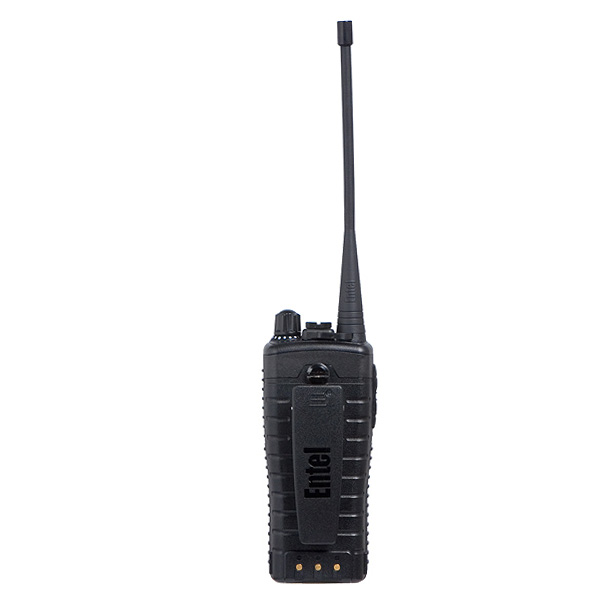

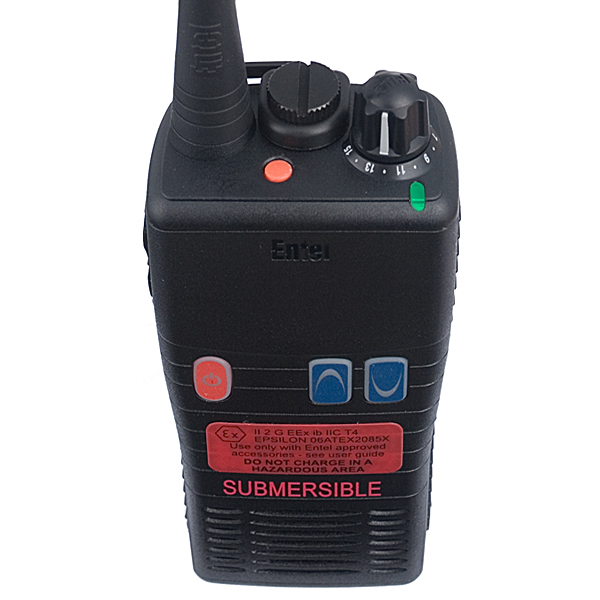

HT982 ATEX IIC Entry Level UHF
For those requiring an entry level marine portable, with a no compromise MIL–STD810 C/D/E/F build specification, the HT982 is the most cost effective solution. Part of the commercial grade HT Series 2.0 of marine portables and designed to endure the every day rigours of life at sea, with its exceptionally loud audio and IP68 submersibility, this portable is the choice of the fire & rescue services and major blue–chip petrochem organisations as well as shipping companies worldwide.
Features:
- Submersible to IP68 (
5 metres for 1 hour) - MIL–STD 810C/D/E/F
- 1800mAh Li–Ion battery
- Flash upgradeable to add future features
- 16 channels
- Private channels
- Robust accessory socket
- 3-key entry model
- Voice annunciation (option)
- Bluetooth™ wireless communications (option)
- Clone data from one radio to another
- VOX hands free (with audio accessory)
Battery charge count - Programmable scrambler (voice inversion)
As standard the HT942 / HT982 is supplied with:
- CNB950E - ATEX approved 7.4v, 1800 mAh rechargeable Lithium-Ion battery pack
- Trickle charger (HT942) / Rapid charger (HT982)
- CBH950 - ATEX approved spare spring loaded belt clip
- High efficiency helical antenna (can be exchanged for stubby aerial at point of order)
- User manual
Specifications:
| General | |
| Frequency Range |
400 - 470MHz (HT982)
450 - 520MHz (HT982-U) |
| Channels | 16 Channels |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Communication Method | Simplex / semi duplex |
| Antenna Impedance | 50 ohm |
| Antenna | Whip / stubby |
| Battery Type | 1800 mAh Li-Ion battery pack |
| Power Supply Voltage | 7.4V DC |
| Current Drain (nominal) | TBA |
| Duty Cycle (5/5/90) | TBA |
| Microphone | Internal condenser microphone |
| Operating Temperature | -20° to +55° |
| Size (mm) |
59.5(W) x 130(H) x 37(D)
W = 59.5 (62 including protrusions) H = 130 (145 inc knobs) D = 37mm (41 including battery protrusions) |
| Weight | 277g with battery and aerial |
| Transmitter | |
| Power Output | 1W |
| Modulation | 8K0F3E/16K0F3E |
| Oscillator Method | PLL |
| Frequency Stability | < ±0.00025% (±2PPM) |
| Maximum Deviation | ±2.5 kHz(Narrow)/ ±5 kHz(Wide) |
| Audio Distortion | < 5% (1 kHz 60%) |
| Spurious Emission | -68 [dBc] |
| Hum & Noise | -40 [dB] |
| Receiver | |
| Receiver Type | Double Super Heterodyne type |
| Sensitivity | -0.25uV (12dB SINAD) |
| Frequency Stability | ±0.00025%(±2PPM) |
| Spurious Rejection | -60 dB |
| Adjacent Channel Selectivity | -60 dB (Narrow) , -70 dB (Wide) |
| Distortion | < 3% Typical |
| Hum & Noise | -40 dB |
| Audio Output | 1W |
| Speaker Size |
|
