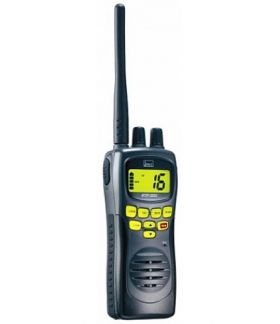

This hand-held portable VHF marine radio has fantastic features whilst allowing the user to enjoy both freedom and mobility. The backlit LCD and keys means the radio can be used both at night and day. The product is also designed to protect against spray and splash.
Features:
- All International, Canadian and US marine channels
- Backlit LCD and keys
- Triple Watch/Programmable scan
- NiMH rechargeable battery
- 1W or 5W power output
- IPX4 waterproof-rated
Specifications:
| General | |
| Frequency Range | 156 - 163MHz |
| Channels | INT, USA, CAN |
| Channel Spacing | 25 kHz |
| Communication Method | Simplex / semi duplex |
| Antenna Impedance | 50 ohm |
| Antenna | Helical |
| Battery Type | NiMH rechargeable battery 7.2V/1200 mAH (included) Battery Tray (included), Type AA alkaline batteries (6 pcs. option) |
| Power Supply Voltage | 7.2V DC |
| Operating Temperature | -20°C to 55°C |
| Size (mm) | 67 (W) x 144 (H) x 42 (D) |
| Weight | 425 g with battery and aerial |
| Transmitter | |
| Power Output | HIGH – 5W, LOW – 1W |
| Modulation | FM ±5 kHz deviation (F3E) |
| Oscillator Method | PLL |
| Frequency Stability | 1.0 ppm (nominal) |
| Maximum Deviation | ±5 kHz |
| Audio Distortion | Less than 3% at 3 kHz deviation with 1 kHz modulation |
| Spurious Emission | -60 dB at 1W, -65 dB at 5W |
| Receiver | |
| Receiver Type | Dual conversion superheterodyne PLL |
| Sensitivity | -3 dBµV |
| Frequency Stability | 1.0 ppm (nominal) |
| Spurious Rejection | -60 dB at 1W, -65 dB at 5W |
| Audio Output | Approx. 0.4W (10% THD) |
