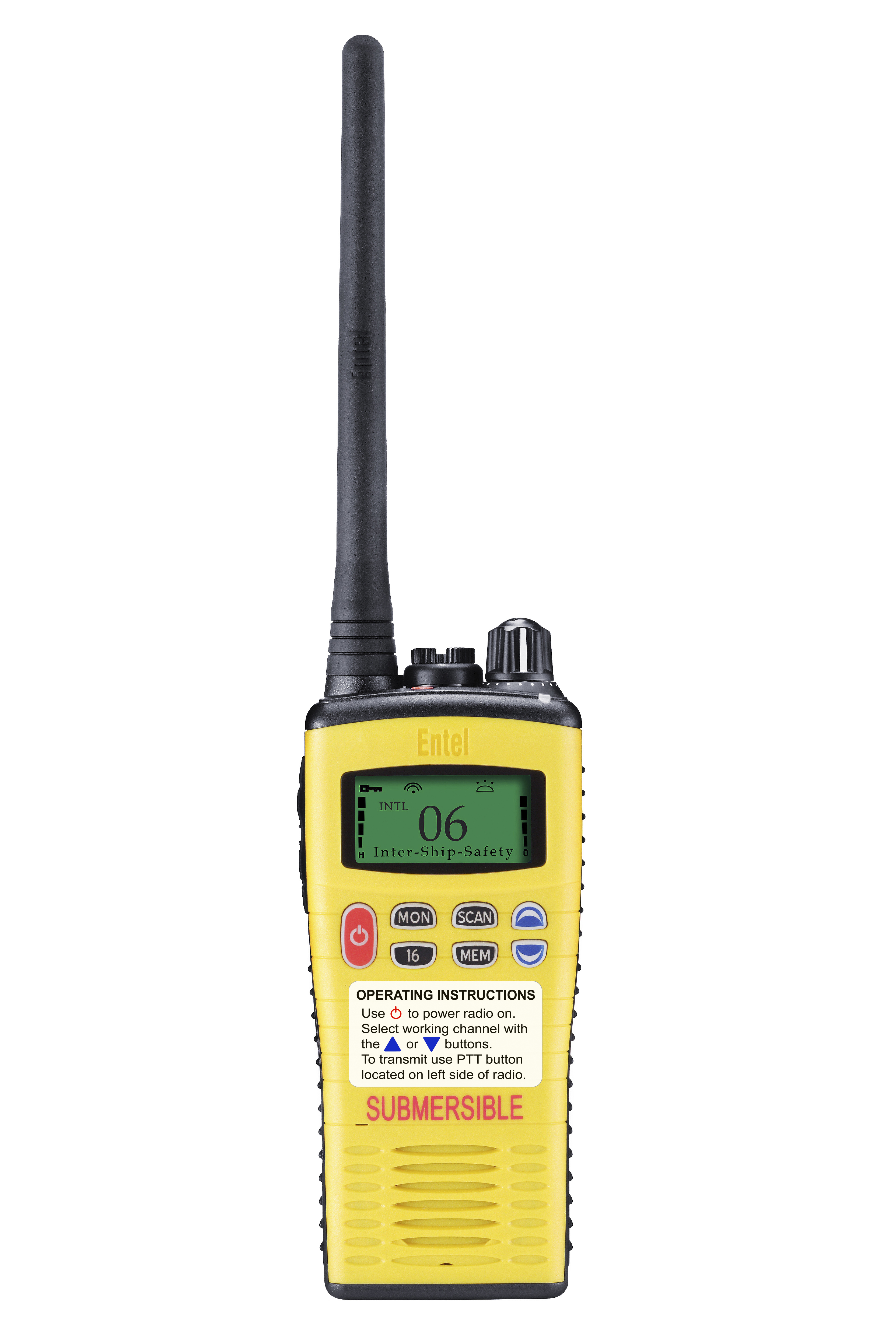

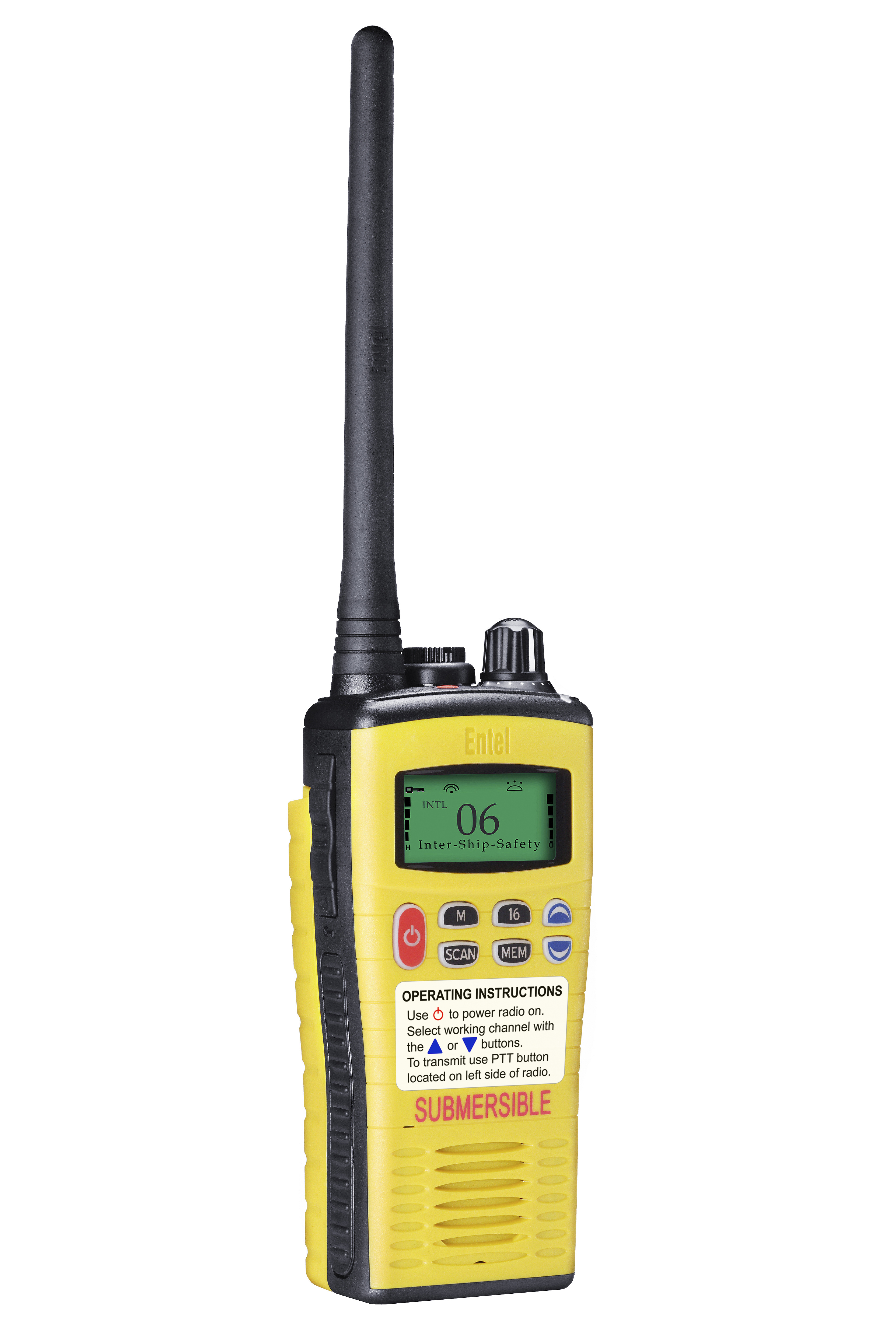

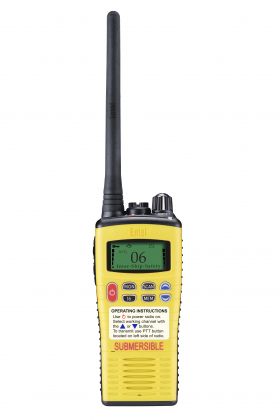

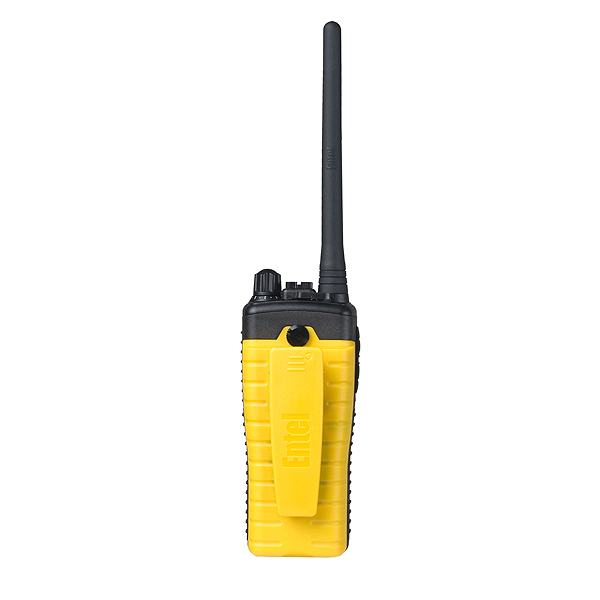

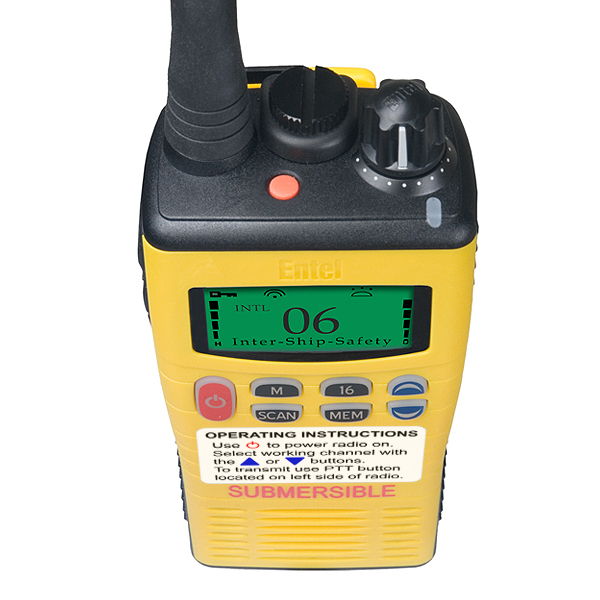

HT649 GMDSS LCD VHF
Our HT649 GMDSS portable is MED certified and carries the essential Wheel Mark logo. For those requiring a full featured GMDSS portable, with high visibility back-lit LCD, the HT649 is the most advanced GMDSS portable available.
From an established generation of commercial grade products the HT Series 2.0 is designed to endure any emergency situation in the most hostile marine environment. Not just compliant with MIL-STD 810C/D/E/F, the HT Series GMDSS also exceeds the MED's IP67 submersibility requirement (1m – 30 minutes) Our GMDSS portables are uniquely approved to IP68 (5m – 1 hour).
Features:
Submersible to IP68 (
MILSTD 810C/D/E/F
2000mAh Li-Ion battery
Flash upgradeable to add future features
- All
INT, USA and CAN channels
Robust accessory socket
7-key keypad
You may choose from the following two packages:
Package 1
- HT649 radio
- Primary battery (CLB750G)
- High efficiency antenna
- User manual
Package 2
- HT649 radio
- Primary battery (CLB750G)
- Secondary battery (CNB750E)
- Trickle charger (CCA230 / CCA110 / CCA12)
- High efficiency antenna
- User manual
Specifications:
| General | |
| Frequency Range | 156 - 163.275MHz (HT649) |
| Channels | International, Canadian & USA |
| Channel Spacing | 25 kHz |
| Communication Method | Simplex |
| Antenna Impedance | 50 ohm |
| Antenna | Helical |
| Battery Type | 2000 mAh Lithium battery pack |
| Power Supply Voltage | 7.4V DC |
| Microphone | Internal condenser microphone |
| Operating Temperature | -20° to +55° |
| Size (mm) |
59.5(W) x 130(H) x 37(D)
W = 59.5 (62 including protrusions) H = 130 (145 inc knobs) D = 37mm (41 including battery protrusions) |
| Weight | 277g with battery and aerial |
| Transmitter | |
| Power Output | 1.3W |
| Modulation | 16K0G3E |
| Oscillator Method | PLL |
| Frequency Stability | < ±0.00025% (±2.5PPM) |
| Maximum Deviation | ±5 kHz |
| Audio Distortion | < 5% (1 kHz 60%) |
| Spurious Emission | -68 [dBc] |
| Hum & Noise | -40 [dB] |
| Receiver | |
| Receiver Type | Double Super Heterodyne type |
| Sensitivity | -0.25uV (12dB SINAD) |
| Frequency Stability | ±0.00025%(±2PPM) |
| Spurious Rejection | -60 dB |
| Adjacent Channel Selectivity | -70 dB |
| Distortion | < 3% Typical |
| Hum & Noise | -40 dB |
| Audio Output | 1W |
| Speaker Size |
|
